Recently, Lenovo launched the thinkplus FLUXO series of power banks, designed for ultimate performance and experience. This power bank comes with a large 20000mAh capacity and a 140W output power, perfectly meeting the charging needs of laptops. It features a cyber-style design, a sunken 2.01-inch high-definition screen, and an ergonomic design.
This power bank also incorporates the industry's first digital hybrid charging technology, using dual DC power supply and supporting multi-port and multi-channel fast charging distribution. Even when the battery is low, as long as the C2 port is charging, the built-in battery will participate in the output, achieving the superposition of two types of electrical energy. The C1 port can output a maximum charging power of 140W. Let's take a look at the actual experience and performance of this power bank.
Unboxing Introduction
The product packaging box adopts a flip - top design. The background features a comic - style display of the product's key selling points and a thumbnail of the power bank. The classic "Lenovo" red logo is located in the lower right corner.
On the back are the product parameter inscriptions. The detailed parameters will be introduced in combination with the actual product below.
After opening the flip - top, the contents inside include the power bank, a 140W charger, a 240W C to C charging cable, and a storage bag.

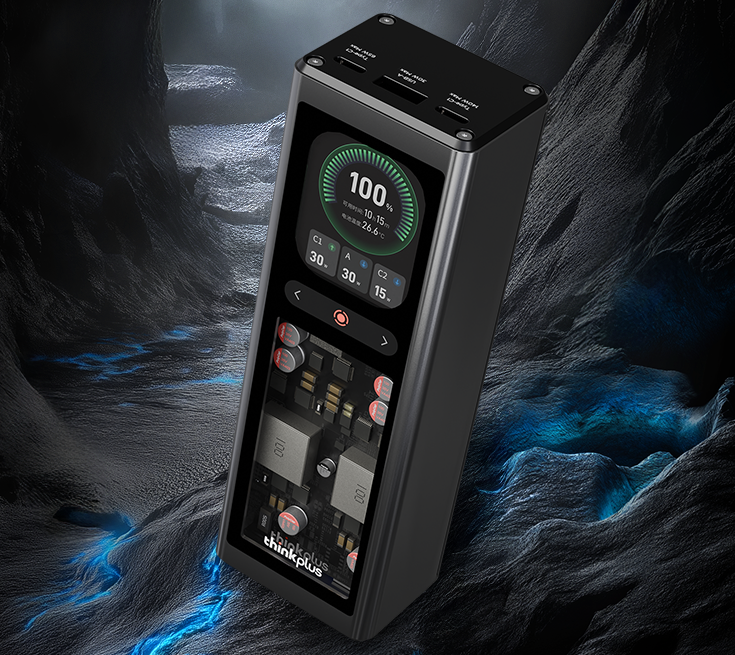

The power bank has a long - strip shape. The upper part features a sunken digital high - definition full - screen, with a touch - type button in the middle, and the lower part adopts a cyber - style transparent window design, allowing you to observe the internal components.
The lower part of the back is the product parameter inscription. The power bank's shell is made of high - flame - retardant fireproof material and coated with metallic paint, giving it a more premium feel.
At the top are three USB ports (2C1A). Below each port, the power and applicable devices are engraved.
On the side, there are the words "FLUXO 140W" and an airplane - carryable logo.
The first - level interface of the display screen can show the remaining battery level, available time, battery temperature, and the charging/discharging power of each port.
In addition to the power bank, the package also includes a 240W C to C charging cable and a thinkplus 140W multi - port gallium nitride charger.
Using POWER - Z KM003C, it is measured that the cable is equipped with an E - Marker chip, with a power supply capacity of 50V 5A 240W EPR and a transmission protocol of USB 2.0.
Protocol Test
Adhering to the concept of exploring comprehensive protocols, BHDChina will conduct protocol tests on the USB ports to help users match the output devices according to specific protocols.
First, let's look at the port protocols of the power bank. Using the POWER - Z KM003C tester to test the protocol of USB - C1, it is actually found to support QC3 +, FCP, SCP, AFC, MTK PE +, PD3.0, PPS, QC5, DCP, and Apple 2.4A charging protocols.
Using the POWER - Z KM003C tester to test the protocol of USB - A, it actually supports QC3.0, FCP, SCP, AFC, MTK PE + 2.0, DCP, and Apple 2.4A charging protocols.
Next, let's check the port protocols of the charger. Using POWER - Z KM003C, it is measured that the USB - C1 port of the charger supports QC3.0, FCP, SCP, AFC, SFCP, PD3.1, PPS, QC5, DCP, and Apple 2.4A fast - charging protocols, basically covering the mainstream fast - charging protocols on the market.
Using POWER - Z KM003C, it is measured that the USB - C2 port of the charger supports QC3.0, FCP, SCP, AFC, SFCP, PD3.0, PPS, QC5, DCP, and Apple 2.4A fast - charging protocols.
Product Test
Next, BHDChina will show you the specific usage experience of this power bank. We will comprehensively introduce this power bank from aspects such as charging compatibility testing, input full - process testing, and output efficiency testing.
Charging Compatibility Test
The compatibility test can clearly show the charging situation of each interface of the power bank for various devices. BHDChina will use dozens of devices to test with the power bank, presenting real test data to readers.
USB - C1
Connect the Lenovo Legion Y9000P to the USB - C1 port of the power bank. The measured power is 20.15V 6.62A 133.38W.
By drawing a bar chart, it can be seen that the device with the highest charging power is the Lenovo Legion Y9000P, which shakes hands with a proprietary protocol, with a power as high as 133.38W. Followed by the Huawei MateBook X Pro, with a power of 125.84W. For mobile phones, models that are compatible with the PPS protocol can obtain a relatively high charging power. For example, the iQOO13 and RedMagic 9S Pro + shake hands with the 5A PPS fast - charging protocol, both reaching very high charging powers. The charging powers of other mainstream models are all in the 10 - 40W range. Overall, the compatibility of the C1 port is excellent.
USB - C2
Connect the MacBook Pro 16 M4 Pro to the USB - C2 port of the power bank. The measured power is 19.98V 3.21A 64.15W.
By drawing a bar chart, it can be seen that the MacBook Pro 16 M4 Pro has the highest charging power of 64.15W. The USB - C2 port is similar to C1. Except that the maximum power is 65W, the handshake voltage and protocol are the same, and the compatibility is also excellent.
USB - A
Connect the Xiaomi 14 Ultra to the USB - A port of the power bank. The measured power is 8.87V 1.54A 13.63W.
By drawing a bar chart, it can be seen that the iQOO13 has the highest charging power of 17W, followed by the Huawei Mate70 Pro +, which shakes hands with the SCP fast - charging protocol, with a power of 17.01W. OPPO - series models have charging powers of around 16W, and the charging powers of other models are all in the 5 - 15W range.
Multi - port Output Test
When users have more smart devices that need to be charged simultaneously, it is necessary to clearly understand the power distribution of this power bank to charge the terminal devices more quickly.
When the two USB - C ports output simultaneously, the output power of USB - C1 is 61.19W, and the output power of USB - C2 is 57.44W.
When the three ports output simultaneously, the output power of USB - C1 is 63.44W, the output power of USB - C2 is 39.18W, and the output power of USB - A is 13.62W.
Digital Hybrid Charging Technology
The digital hybrid charging technology is an industry - first charging technology developed by Lenovo. Users can use the charger to supply power to the power bank, powering the output ports and the battery at the same time. When charging and discharging simultaneously, the built - in battery participates in the output, achieving the superposition of two types of electrical energy, which is the "digital hybrid charging technology".
The digital hybrid charging technology can transform the original adapter into a multi - port charger. While charging the power bank, a single port can quickly become a multi - port charger, achieving convenient storage.
When the power bank is charging, the input power is 62.52W. Through the superimposed output of the output port and the battery, the output power of USB - C1 is 86.32W.
When outputting to two devices, the input power is 62.36W, the output power of USB - C2 is 81.07W, and the output power of USB - A is 13.83W.
Temperature Test
A power bank is a conversion device, and there will be losses during the charging process, which are dissipated in the form of heat, so the power bank will generate heat. The thinkplus FLUXO High - Power Laptop Power Bank 140W 20000mAh supports a maximum output of 20V7A 140W. Place the power bank in a constant - temperature box at 25°C and collect the surface temperature of the power bank after 8 minutes of 20V7A load.
After 8 minutes of discharging, use a thermal imager to take a photo of the front of the power bank. It can be seen that the highest temperature is mainly concentrated in the component part, with a temperature of 52.8°C (due to the large impact of the reflective material on infrared, the infrared temperature can only show the hot spots, and the actual temperature is not that high), and the central temperature is 42.3°C.
Looking at the back temperature, it can be seen that the position of the highest temperature is the same as the front, with the highest temperature being 40.9°C and the central temperature being 37.3°C.
Summary
In terms of charging, although the power bank does not support PD 3.1, the USB - C1 port can provide a 20V 7A 140W output gear. It actually provides a charging power of about 133W for the Lenovo Legion Y9000P. It also has two sets of 5A PPS fast - charging protocols. The actual compatibility test shows good performance. Whether charging mobile phones, game consoles, tablets, or laptops, it has good fast - charging performance. For models that support the PPS protocol, the highest charging power can reach about 90W.
In terms of multi - port output, the output power of the two USB - C ports can reach 120W, and the three - port output can reach 116W, basically in line with the official data. It also supports continuous charging when unplugging and plugging multiple ports (only for mobile phones). In addition, the power bank is equipped with the industry's first digital hybrid charging technology, which can not only charge the power bank but also supply power to laptops and mobile phones, simply improving desktop tidiness and reducing the number of chargers on the desktop.
Overall, the performance of the thinkplus FLUXO High - Power Laptop Power Bank 140W 20000mAh is sufficient to meet the charging needs of most smart devices on the market. The 20V 7A output can provide power support for high - power devices such as laptops. Compared with carrying a large "brick - like" charger when going out, this power bank is undoubtedly a better choice.
